Description
roll rite tarp parts TarpMaster® Tarp Motor & GearboxRollRite TarpMaster Motor & Gearbox (12 24 V) Variants: Motor + Gearbox (Complete Unit) Motor Only Gearbox Only The RollRite TarpMaster gear motor is the heart of RollRite's pivot arm tarp systems the ones you'll see on dump trucks and tippers with arms that swing up from the side to cover the load. If you're searching for a TarpMaster motor, you already know what you need. This is it. Runs on 12 V or 24 V. Built tough with a compact wormgear design

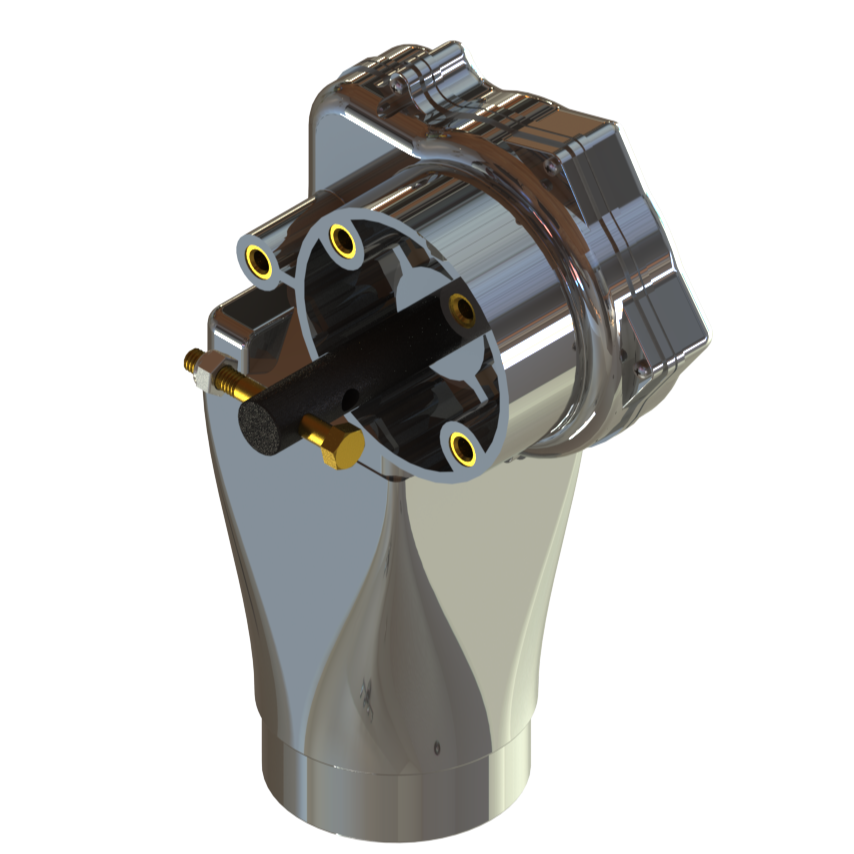

Roll‑Rite TarpMaster® Motor & Gearbox (12 / 24 V)
Variants:
- Motor + Gearbox (Complete Unit)
- Motor Only
- Gearbox Only
The Roll‑Rite TarpMaster® gear motor is the heart of Roll‑Rite's pivot arm tarp systems — the ones you'll see on dump trucks and tippers with arms that swing up from the side to cover the load. If you're searching for a TarpMaster motor, you already know what you need. This is it.
Runs on 12 V or 24 V. Built tough with a compact worm‑gear design delivering high torque for reliable, consistent operation through a full pivot arm cycle.
- 900 W, 60:1 gear ratio, ~64 RPM — smooth, controlled arm movement
- Chrome‑plated, corrosion‑proof housing — built for Aussie conditions
- 3‑year non‑prorated warranty (5‑year on Super Duty variant)
- Fully sealed and jet‑wash resistant
- Plug‑and‑play with standard 2‑wire systems and in‑cab rocker switches
- Drop‑in replacement for Roll‑Rite pivot arm systems
Complete unit includes: TarpMaster motor with gearbox, mounting flange, chromed casing, and sealed cover.
Motor‑only and gearbox‑only options available for rebuilds or partial replacements.
What is a pivot arm tarp system?
A pivot arm system uses a lower pivot arm and telescopic upper tarp bow — made from high-strength extruded aluminium — to swing a tarp across the load from a side-mounted motor. The TarpMaster motor drives the whole system, pivoting the arms from open to closed in seconds. Common on dump trucks, tipper trailers, and hook lift bins.
Compatibility
Designed specifically for Roll‑Rite pivot arm tarp systems (TarpMaster series). Works with Roll‑Rite® and Super Duty® drivetrains compatible with 900 W / 60:1 output. If you're replacing an existing TarpMaster motor this is a direct swap.
Specs
| Spec | Value |
|---|---|
| Voltage | 12 V or 24 V DC |
| Gear ratio & output | 60:1 ~ 64 RPM |
| Torque | High‑torque worm‑gear |
| Warranty | 3 yr non‑prorated (5 yr Super Duty) |
| Shaft | 3/4″ keyed or stub flange |
| Housing | High‑polish chrome, corrosion‑resistant |
Need help?
Call us on 0429 200 245 or send us a message — we'll confirm it's the right motor for your setup before you order.
